Three-Phase Filters

General Specifications:
  • Current Overload: 6x rated for 8 seconds
  • Maximum Operating Ambient Temperature at Rated Current: 40o C
  • Humidity Range: 0-95% RH
  • Insulation Resistance: 9x109 Ohms at 100 VDC
  • Units may be paralleled for higher current requirements




  • Effective for Motor Drive and Switch-mode Power Supply applications
  • Delta and WYE Filters are optimized for respective applications
  • L-Section most economic solution to high frequency interference problems
  • L-Section usually provides sufficient attenuation to meet Class A and B FCC part 15
  • T-Section solves most severe interference problems
  • T-Section used most effectively with low impedance loads
  • T-Section is more effective in meeting EN50081 Standards
HL Series (Delta) L-Section, 1-Stage
@600 VAC 10, 20, 30, 40, 60, 75 Amps
Data Sheet in Adobe Acrobat (.pdf) format.


HT Series (Delta) T-Section, 2-Stage
@600 VAC 10, 20, 30, 40, 60 Amps
Data Sheet in Adobe Acrobat (.pdf) format.

FL Series (Delta) L-Section, 1-Stage
@480 VAC 100, 150, 200, 300 Amps
Data Sheet in Adobe Acrobat (.pdf) format.

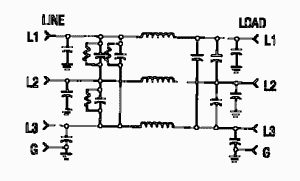

DL Series (Delta) L-Section, 1-Stage
@250 VAC 10, 20, 30, 40, 60 Amps
Data Sheet in Adobe Acrobat (.pdf) format.

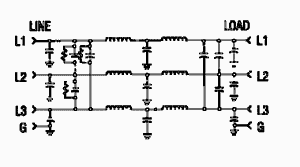

DT Series (Delta) T-Section, 2-Stage
@250 VAC 10, 20, 30, 40, 60 Amps
Data Sheet in Adobe Acrobat (.pdf) format.

YL Series (WYE) L-Section, 1-Stage
@433 VAC 20, 30, 40, 60 Amps
Data Sheet in Adobe Acrobat (.pdf) format.

YT Series (WYE) T-Section, 2-Stage
@433 VAC 20, 30, 40, 60 Amps
Data Sheet in Adobe Acrobat (.pdf) format.
